      Pressure Sensor Assembly & Test Line

      The production line is equipped with 8 stations with straight line layout. The core processes include pressure calibration, assembly, voltage test, FT test, leakage test, helium inspection process, etc.

      Flexible production, compatible with dozens of models of sensor products, 80% of the station can be directly compatible without the shift, the rest of the station shift time 5min

      The solenoid proportional valve is used to control the pressure and rotary pressure head to realize the full automatic and efficient calibration of PS80 products, and the design of vacuum disordered suction Pin, automatic shrink opening, automatic labeling and automatic wire harness greatly improves the degree of automation

    • yalichuanganqizuzhuangceshixian.png

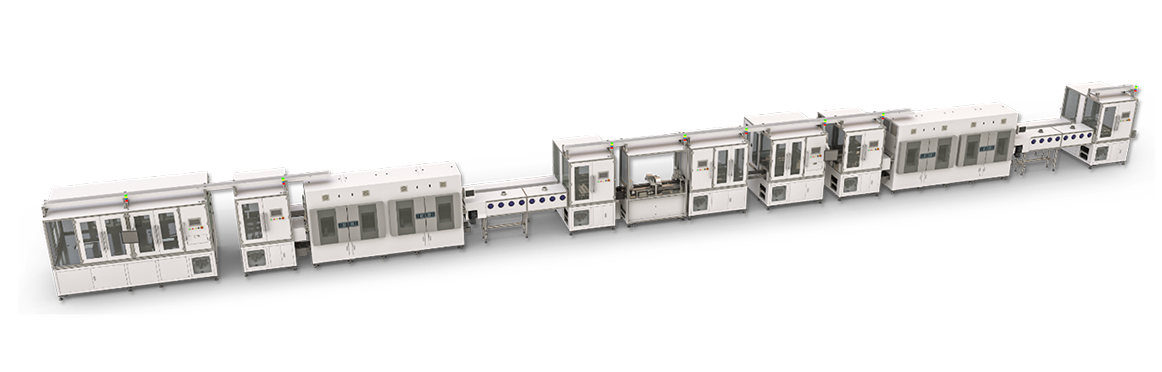

      Pressure Sensor Assembly Line

      The production line has a total of 12 stations, linear layout, the core process includes dispensing, assembly, curing, screw, PIN, etc.

      The combination of lock screw and spring tooling makes SEA products realize mass curing under constant pressure in curing furnace, meet the demand of 1h curing time, and make the curing CT reach 6.5s, greatly improving the product production CT; using vibration plate, vacuum blowing PIN and cylinder to realize efficient PIN needle feeding, combined with independent automatic PIN mechanism greatly improves the product assembly efficiency

    • chuanganqizuzhuangceshixian.png
      Sensor Assembly & Test Line

      The production line includes 5 workstations, with processes that include press fitting, high and low temperature concentration calibration testing, noise testing, and End-of-Line (EOL) testing.

      The line cycle time is 45

      The production line equipped with MES data control of the whole line, real-time monitoring of product process data, and real-time alarm feedback of abnormal situations

    • gaoyajidianqichanxian.png

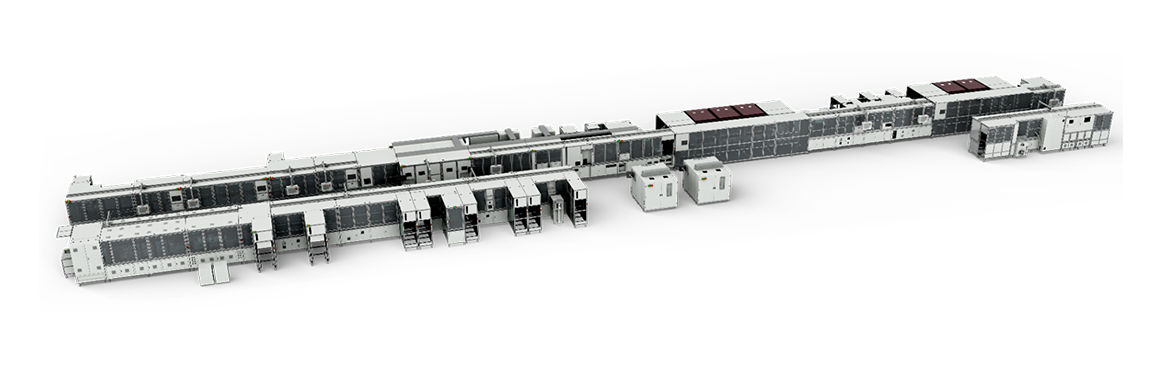

      Power Supply High-Voltage Relay Production Line

      The project is configured with 10 workstations in a linear layout. The core processes include: post-brazing ceramic inspection, helium leak testing, magnetic block assembly & inspection, dynamic component pairing & testing assembly, intermediate inspection, laser welding, hydrogen-helium gas mixture filling, high-voltage relay final assembly, and FFT functional testing.

      The production line layout is modular, each equipment is independently splicing, highly flexible and convenient for the integration and transformation of equipment in the later stage

      The production rate of good products in the production line is 99.5%, with MES data control of the whole line, real-time monitoring of product process data, and real-time alarm feedback of abnormal situations

    • gaoyajidianqichanxian1.png

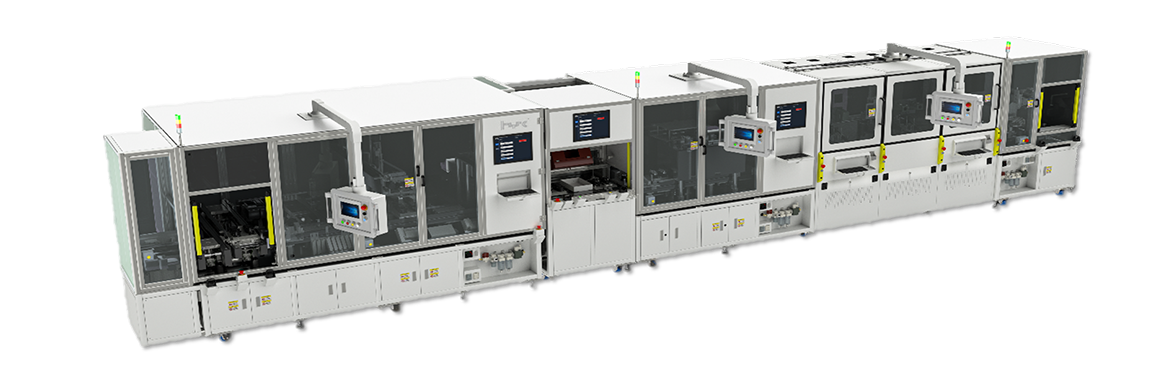

      Power Supply High-Voltage Relay Production Line

      The equipment is equipped with 5 stations, with straight layout. The core processes includes: pre-leakage, helium inspection, gas recharge, copper pipe cutting sealing, contact cycle detection, current sophistication, voltage resistance & insulation resistance test, assembly of high voltage relay finished products and FFT function test, etc.

      Flexible production, compatible with a number of high voltage relay products, change time of 5min

      To realize the whole process of quality control of the expected finished products

      Assembly finished product qualified> 95%, equipment beat 25s / piece

      Real-time equipment performance and process parameters monitoring, the production of the whole process data traceability system
